Point
Un vela fácil y fiable para principiantes y precisión de aterrizaje
The POINT is a simple and comfortable glider for accuracy competitions and got EN/LTF A certification.
It has been designed to allow anyone to enter the target in a stable approach with easy and comfortable control by providing special design and functions suitable for accuracy competition through long research and testing from Test Team Davinci.
As the world's first exclusively designed for accuracy competition glider, Davinci glider's POINT is getting the remarkable achievement.
POINT: a right start for accurate landings.
It has been specially designed only for accuracy competition

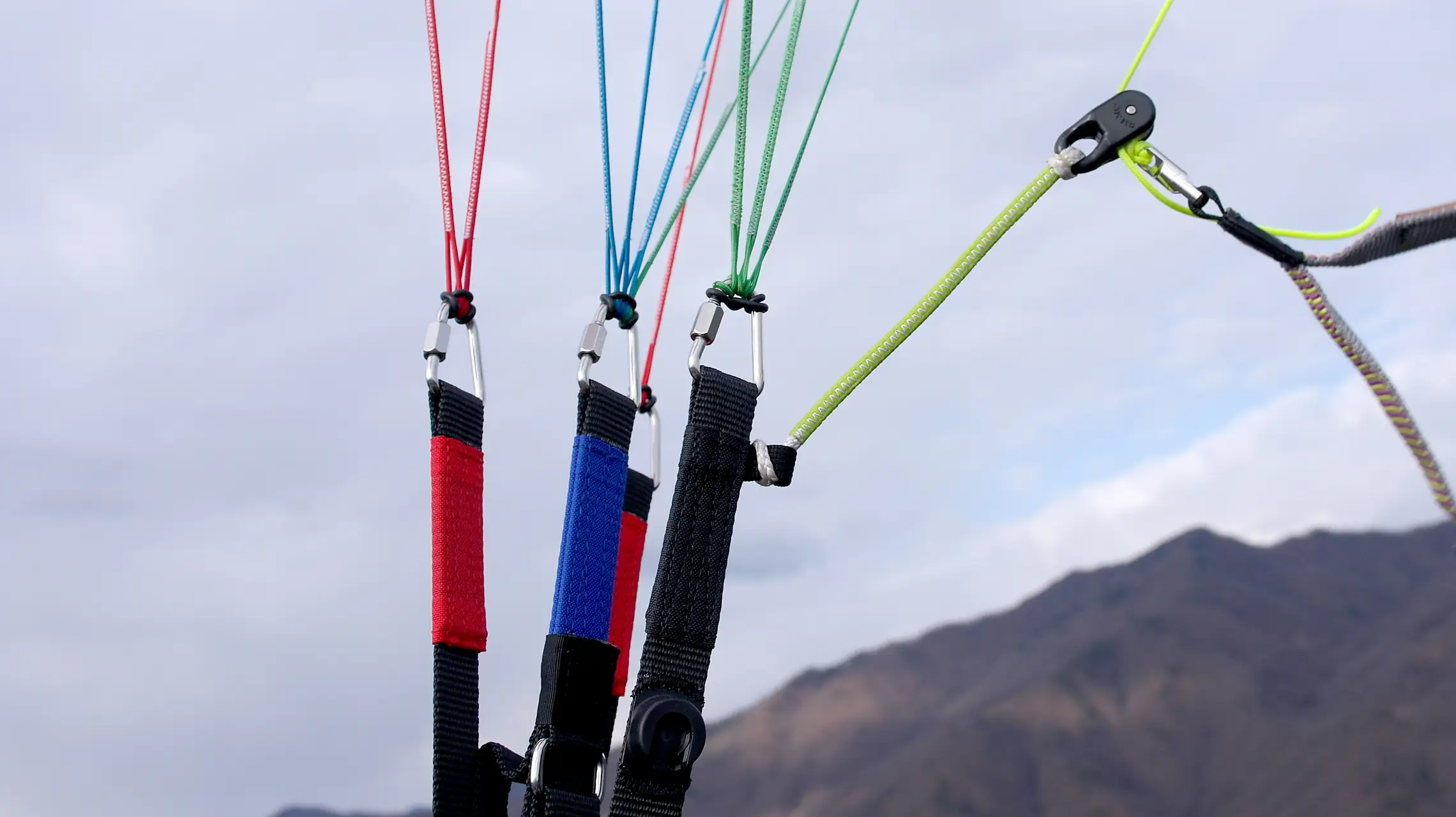

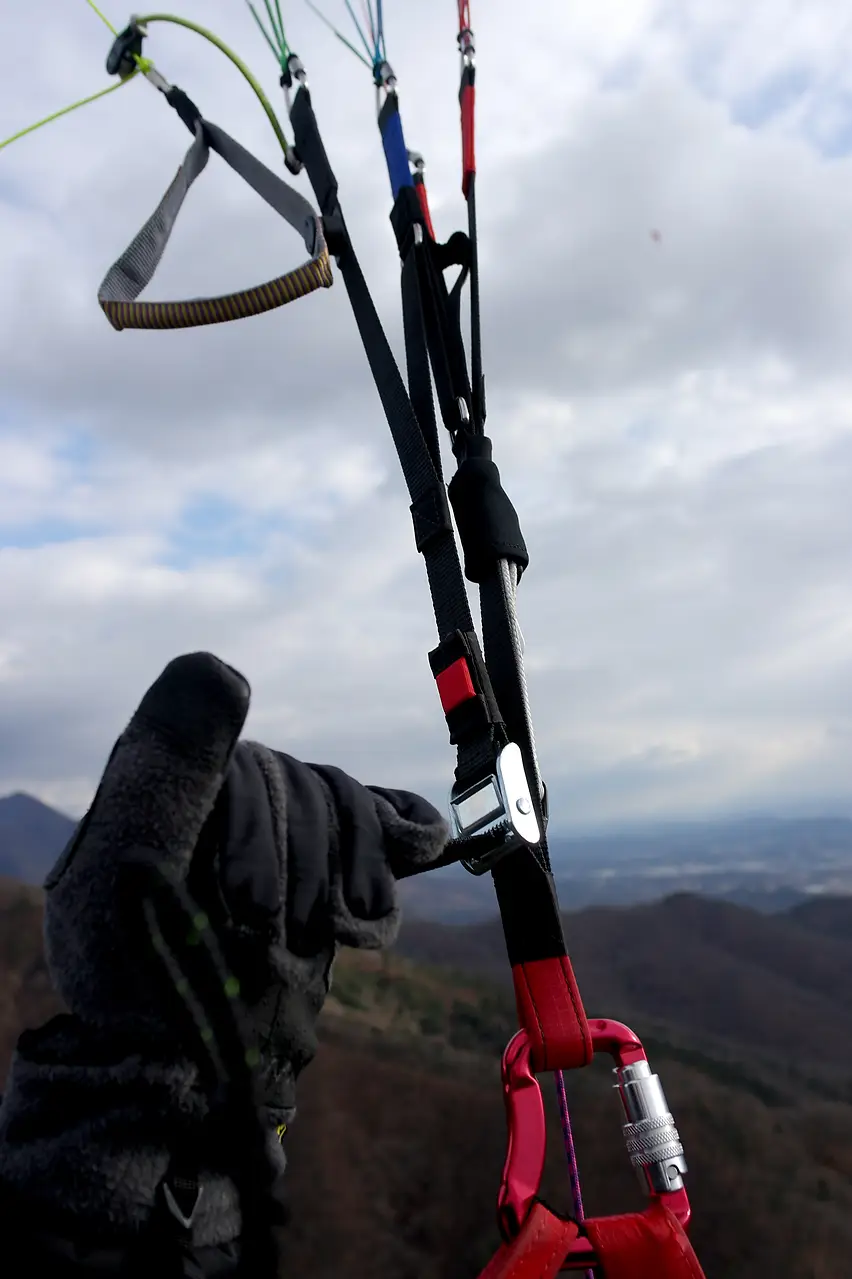

- TRIMMER SYSTEM
- SMART NOSE +
- OPTIMIZED HEIGHT for STABILIZATION
- SPECIALIZED LINE CONSTRUCTION
Technical data
| XXS | XS | S | SM | M | ML | L | |
|---|---|---|---|---|---|---|---|
| Flat area, sq.m | 21.2 | 23.0 | 25.0 | 26.0(PLAN) | 27.0 | 28.1(PLAN) | 29.8 |
| Flat A.R. | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 | 4.8 |
| Flat span, m | 10.1 | 10.5 | 11.0 | 11.2 | 11.4 | 11.6 | 12.0 |
| Projected area, sq.m | 18.1 | 19.7 | 21.4 | 22.3 | 23.1 | 24.1 | 25.5 |
| Projected A.R. | 3.58 | 3.58 | 3.58 | 3.58 | 3.58 | 3.58 | 3.58 |
| Projected span, m | 8.06 | 8.40 | 8.76 | 8.93 | 9.10 | 9.30 | 9.60 |
| Cells, total | 38 | 38 | 38 | 38 | 38 | 38 | 38 |
| Cells, closed | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Flattening, % | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Cord max, m | 2.58 | 2.7 | 2.81 | 2.86 | 2.92 | 2.98 | 3.06 |
| Cord average, m | 2.05 | 2.19 | 2.28 | 2.32 | 2.37 | 2.42 | 2.49 |
| Lines height, m | 6.4 | 6.8 | 7.1 | 7.3 | 7.4 | 7.6 | 7.8 |
| Lines scheme | A2A'1B4C3 | A2A'1B4C3 | A2A'1B4C3 | A2A'1B4C3 | A2A'1B4C3 | A2A'1B4C3 | A2A'1B4C3 |
| Trims travel, mm | -20,+30 | -20,+30 | -20,+30 | -20,+30 | -20,+30 | -20,+30 | -20,+30 |
| Accelerator travel, mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Takeoff weight, kg | 50-75 | 60-85 | 75-95 | 80-100 | 85-105 | 90-110 | 100-120 |
| Glider weight, kg | 4.0 | 4.2 | 4.4 | 4.6 | 4.8 | 5.0 | 5.1 |
| Certification | EN A | EN A | EN A | EN A(Plan) | EN A | EN A(Plan) | EN A |
Materials
| Manufacturer | Material | |
|---|---|---|
| Upper surface leading edge | Myungjin Textile Co. | MJ 40MF |
| Upper surface except leading edge | Myungjin Textile Co. | MJ 32MF |
| Bottom surface | Myungjin Textile Co. | MJ 32MF |
| Ribs, supported | Myungjin Textile Co. | MJ 38HF |
| Ribs, unsupported | Myungjin Textile Co. | MJ 38HF |
| Diagonal ribs | Myungjin Textile Co. | MJ 38HF |
| Lines, upper cascades | Edelrid | 8000U-70 |
| Lines, middle cascades | Edelrid | 8000U-160/120 |
| Lines, main (lower) cascades | Liros | PPSL-275/200/160 |
| Lines, upper stabilo cascade | Edelrid | 8000U-70 |
| Lines, middle stabilo cascade | Liros | PPSL-160 |
| Lines, upper brake cascade | Liros | DSL-70 |
| Lines, middle brake cascade | Liros | PPSL-120 |
| Lines, main (lower) brake cascade | Edelrid | 10N-200 |
| Risers, webbing | Guth&Wolf GMBH | 20mm webbing |
| Thread | Coats Thread | 210D/3, 420D/3 |
| Lines, main (lower) stabilo cascade | Liros | PPSL-160 |
